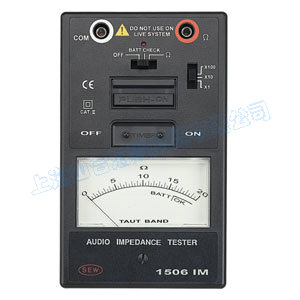

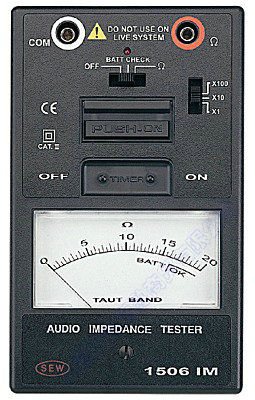

1506 IM   Audio Impedance Tester
1506 IM
FEATURES

 High quality Taut Band movement
 Battery-powered audio impedance tester
 Timer function for hand free use
 Battery indicator
 The tester measure with a frequency of 1KHz
 Measure speaker's impedance
 Measure speaker lines (connected to load)
 Help to calculate and check audio power systems
 Ideal for public adress installation and maintenance
 Measure transformer impedances
SPECIFICATIONS

Measurement System constant current inverter with 1KHz approx. 2mA
Measuring Ranges 20 Ohm/ 200 Ohm/ 2K Ohm
Accuracy +/- 2.5% of full scale
Power Source 1.5V SUM-3 (AA) x 6
Dimensions 163(L) x 100(W) x 50(D)mm
Weight Approx.420g (battery included)
Safety Standard IEC 1010 CAT II 100V
Accessories Test leads, heavy-duty case, instruction manual
特 點
● 供量測音響擴大機線路阻抗,以期提高音質效果。
● 採用高品質吊線式防震表頭。
● 電池能量指示。
● 操作頻率為1KHz。
● 可量測擴大器和變壓器的內阻。
● 可以推測和檢查音響電源系統,以利於裝置和維護。
● 通過安規條款:IEC1010 CAT Ⅱ 100V。

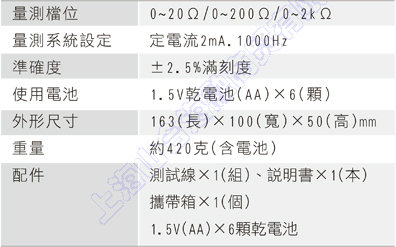

規 格 (23°C±5°C <80%R.H.)
