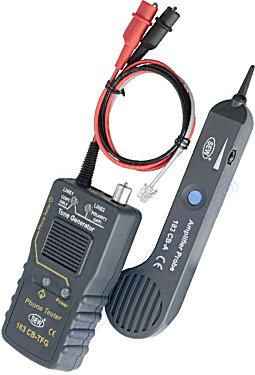

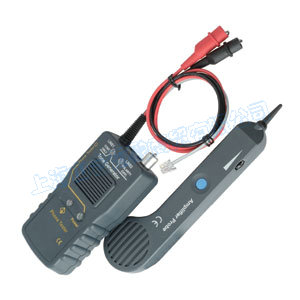

183 CB   Cable Tracer
183 CB
FEATURES

 AMPLIFIER PROBE (183 CB-A)
 The Amplifier Probe is designed to identify and trace wires or cables within a group without damaging the insulation.
 Works with any Tone Genertor to identify wires.
 Volume control for increased sensitivity and adjustable to suit various work environments.
 Recessed ON/OFF button prevents battery drain.
 Power supply is in any 9V battery with a life of approximately 100 hours.
 A phone jack is designed for headset or handset.
 PHONE TESTER / GENERATOR (183 CB-TFG)
 Phone Tester / Generator is a great tool fo locating and identifying cable pairs or individual conductors.
 183CB-TFG does not only provide the function of a tone generator, but also serves as a condinuity and polarity tester.
 A tone selector switch located inside the unit for selection of the fast tone or slow tone.
 Two bi-colored LEDs for Line 1 and Line 2 indication of the polarities of the telephone lines.
 The unit has alligator-type terminals and a modular cable of 4 conductors with a strong Connector.
 The tone and continuity functions are only applied to Line 1. (modular connector)
 THE FUNCTINOS OF PHONE TESTER :
 Continuity and resistance testing of voltage free jbjects.
 Check direct and alternating voltages.
 Testing capacitors.
 Testing diodes.
 Testing gtransistors.
 Power ON/OFF switch for Test-Phone functions.
 The indication of the LED lamp and buzzer sound occur at the same time.
 The LED indication of Power ON status.
SPECIFICATIONS

Amplifier Probe (183CB-A) Frequency Detection : 1Hz ~ 12kHz
Receiver Distance Sensitivity Control : < 50 cm
Tone Generator (183 CB-TFG) Waveform : Square Wave
Frequency : 1k Hz +/- 15%
Over Voltage Protection : 80V DC
Alternating Tone : Fast and slow
Connection : RJ11 connector
Phone Tester (183CB-TFG) U test : < 4.75V
I test : < 2mA
Resistance : 0 ~ 2 M
GENERAL
Operating Temperature & Humidity 0 degree C ~ 40 degreee C, 80% Max.
Storage Temperature & Humidity -10 degree C ~ 50 degree C, 80% Max.
Power Source Amplifier Probe : 9V battery.
Phone Tester / Generator : 1.5V AA battery x 6
Dimensions Amplifier Probe : 270 (L) x 50 (W) x 25 (H) mm
Phone Tester / Generator : 143 (L) x 74.5 (W) x 33.6 (H) mm
Weight Amplifier Probe : 125g (battery included)
Amplifier Probe : g (battery included)
Safety Standard EN 6136-1, EN 55011, EN 61000-4-2, EN 61000-4-3
Accessories Instruction Manual
Batteries
Carry pouch
特 點
音頻接收器(183 CB-A)
1.具可調式音量控制鈕,依工作環境需要,選擇聲音大小。
2.外端接點,可與電話筒連接,方便接線人員操作。
3.使用之操作開關,利於節省電力,延長電池壽命。
4.連線操作,電池使用壽命約100小時。

音頻發射器(183 CB-TFG)
● 搭配音頻接收器(183 CB-A),可以分辦或追蹤纜線 或集團線中之一條,而不需要破壞線的外層絕緣體。
● 有導通測試和分辨電話線極性的功能。
● 機殼內有音頻選擇推鈕,可視工作環境實際需要作音頻快速或緩慢的選擇。
● 有兩顆雙色LED,可以偵測Line 1和Line 2的電話 線極性。
● 設計有鱷魚夾和RJ11四芯的接頭。
● 導通測試只限Line1 LED來判別。
規 格
音頻產收器(183 CB-A)
音頻接收器 1Hz~12kHz
感應接收距離 < 50cm
感度控制旋鈕 ˇ
感應端子 固定式
使用電池 9V(6F22) × 1
外形尺寸 230(長)×56(寬)×27(高)mm
重量(含電池) 約125公克
音頻發射器與電話系統檢測計(183 CB-TFG)二合一
波形 方波
頻率 1kHz±15%
過載保護 80V DC
過載保護 快速與緩慢
電話接頭 RJ11
使用電池 1.5V (AA) × 6
外形尺寸 143(長)×74.5(寬)×33.6(高)mm
重量(含電池) 約318公克
電話系統檢測計
較响亮的喇叭 ˇ
導通測試 ˇ
檢查額定電阻 ˇ
檢查額定電壓(AC/DC) ˇ
檢查額定電容 ˇ
檢查額定二極體 ˇ
一般敘述
操作溫濕度 0°C-40°C Z大相對濕度80%
儲存溫濕度 -10~50C, Z大相對濕度80%
安規條款 EN 61326-1 EN 55011
EN 6100-4-2 EN 6100-4-3
