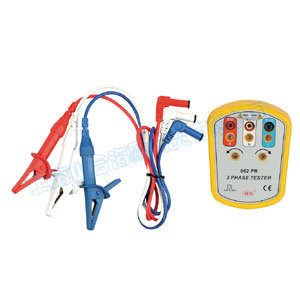

862 PR   Phase Sequence Indicator
862 PR
FEATURES

 Two functions in one unit. Including open phase, phase sequence.
 Large size alligator clips. Can easily clip on switch-boards terminals.
 Highly reliable. Identifies 3 phase sequence and open phase check.
 Functional design. This model is ideal for installing conveyor lines, pump systems and interconnected drivers.
 Waterproof.
 EN 61010-1 CAT III 600V/CAT IV 300V.
 Special test leads length are available on request.
SPECIFICATIONS

Input Voltage 100-600V AC
Frequency Range 45-70 Hz
Circuit Structure All electronic (not mechanical)
AC Power Consumption Approx. 7mA per phase rotation field indicator
Dimensions 102(L) x 78(W) x 32.5(D) mm
Weight 862 PR : 115g, Test leads : 97g, Total : 212g
Accessories Test leads (AL-34)
Vinyl case
Instruction manual
特 點
● 量測三相電源的相序和欠相狀況,在了解狀況後,再行正確接電,可確保不被燒毀和正常運作。
● 使用大型鱷魚夾,方便夾住端子。
● 適合馬達製造業、水電裝配業和電工電機人員運用。
● 測試線長度可隨客戶需要設計。
● 符合 EN 61010-1 CAT Ⅲ 500V
EN 61326-1
規 格
