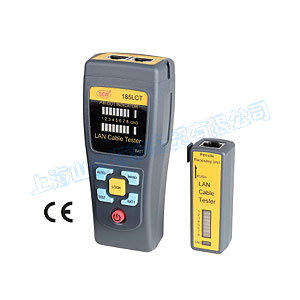

185LCT   LAN Cable Tester
185LCT
FEATURES

 Designed for RJ45/RJ11 modular cables 10/100 base-T cable and Token Ring cable etc.
 The LAN cable tester can verify cable continuity, open, short circuit and miss-wired.
 The remote receiving unit is available for installed cables far away either on the wall plates or on the patch panels.
 Auto and manual scan function.
 Ground wire test.
 Lock status function.
 Buzzer sound warning for wire status.
 Display : LED indication for wire status.
 EN61326-1
 The 185LCT LAN cable tesster is a newly designed tool that can easily test the correct pin configuration of the RJ45/RJ11 modular cables, 10/100 base-T cable and Token Ring cable etc.
 By comparing one transmitting end and corresponding receiving end, the 185LCT LAN cable tester also can test installed cable far away by using the remote receiving unit.
 The 185LCT provides the bariety for wiring check, such as cable continuity, open status, short status and mss-wired.
SPECIFICATIONS

Display LED
Operating Temperature 0 ~ 40 degree C
Power Source 9V (6F22, 006P) battery x 1
Dimensions Master unit : 132 (L) x 55 (W) x 39 (D) mm
Remote receiving unit : 74 (L) x 30 (W) x 25 (D) mm
Weight Master unit : 148 g, Remote receiving unit ; 33 g
Accessories Instruction manual, Pouch, Battery
特 點
● 區域網路測試儀(185 LCT)供檢測RJ45/RJ11纜線, 10/100 base-T纜線及Token Ring纜線
的通路情況。它藉由遠端接收計,很容易檢測出網路線是否導通,開路,短路,或錯接。
● 可作自動掃描及手動掃描。
● 接地線檢測。
● 鎖定功能設計。
● 電池能量LED顯示。
● 通過歐洲安規驗證 EN 61326-1
規 格
顯示方式 LED
操作溫濕度 0°C ~ 40°C
儲存溫濕度 -5°C-50°CZ大相對溼度80%
外形尺寸 主機:
132(長)×55(寬)×39(高)mm
遠端接收計:
74(長)×30(寬)×25(高)mm
重量 主機:約148公克
遠端接收計:33公克
使用電源 9V乾電池(6F22)×1
