2330 LX   Light Meter
2330 LX
FEATURES

 Wide range for measurements as high as 40000 lux and 4000 fc.
 0.01 lux and 0.001 fac resolution for accurate low light level measurements.
 Light sensor cover is included for preserving sensor life.
 Auto off function.
 Data hold and peak hold function.
 Low battery indication.
 Over range indication.
 Auto-ranged.
 Manual-ranged.
 Calibration mode is provided.
 9V battery system.
 Selection key for lux and fx.
 The spectral sensitivity close to CIE photopic curve.
 Ideal tool for workplace, clean-room and computer room light testing.
 Video, photographic, office classroom, and architectural uses.
 EN 61326, EN 61000-4-2, EN 61000-4-3
SPECIFICATIONS

Measuring Ranges 39.99/399.9/3999/39990 lx, 3.999/39.99/399.9/3999 fc
Resolution 0.01 lx ~ 10 lx, 0.001 fc ~ 1 fc
Accuracy +/- (3%rdg+5dgt) Calibrated to standard incandescent lamp, 2856 degree K
Display 40000-count LCD
Photosensor Silicon photodiode
Operatng/storage Conditions 0 degree C ~ 40 degree C < 80% RH, -10 degree C ~ 50 degree C <70% RH
Power Source 9V (6F22.006p) x 1 battery
Dimensions 194(L) x 62(W) x 34(D)mm
Weight Appox. 245g (battery is included)
Accessories Instruction manual
Battery
Carry case
特 點
● 量測範圍寬廣可到40000lux和4000fc。
● 設計有保護蓋,保護光感測器。
● 讀值鎖定、峰值鎖定。
● 自動換檔亦可手動換檔。
● 自動關機。
● 過載顯示。
● 低電源顯示。
●設計有lx與fc量測選擇鍵。
● 有校正鍵,進行自動歸零動作。
● 通過歐洲安規驗證:EN 61326-1

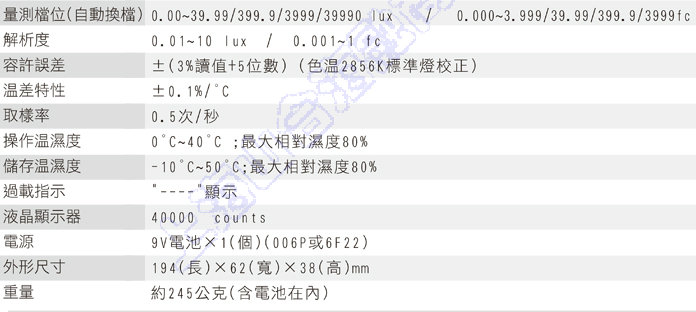

規 格 (23°C±5°C <80%R.H.)
