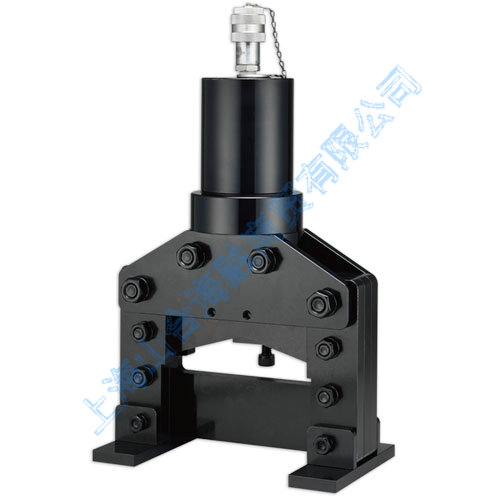

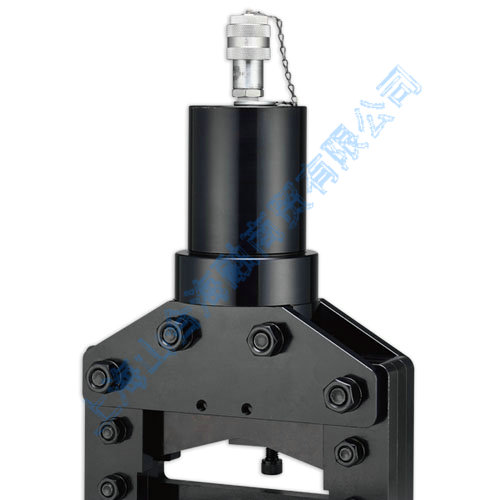

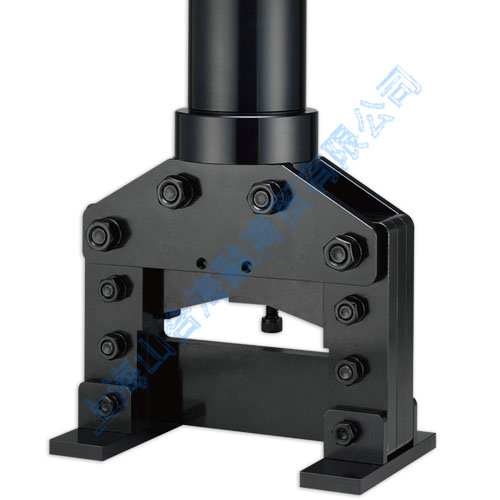

Product Name : HDBC-16

Enlargement



Product Character

Model No. HDBC-16
Height: 457 .5 mm
Weight: 28 kgs

Specifications:
Max. Pressure: 10,000 psi / 700 bar
Oil Required: 176. 3 cc
Max Output: 27 tons / 264.6 KN

Cutting Capacity:
Max. Width : 160 mm
Max. Thickness : 15 mm
Materials : Aluminum, Copper, Iron

Features:

  • Vertical stand ideally suited for cutting solid copper and aluminum bus bars.
  • Level and precise cut.
  • Great cutting capacity.
  • Single action cylinder can be uncoupled from the cutting unit.
  • Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
