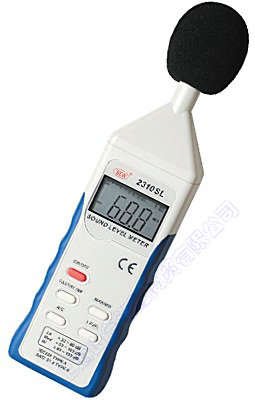

| 2310 SL Sound Level Meter
|
 |
|
|
FEATURES |
| |
 Max. & Min. function. |
| Over & Under range indication. |
| 4-digit LCD display with bar graph. |
| Frequency weighting characteristic for 2 times per second. |
| AC signal output. |
| Low battery indication. |
|
|
|
|

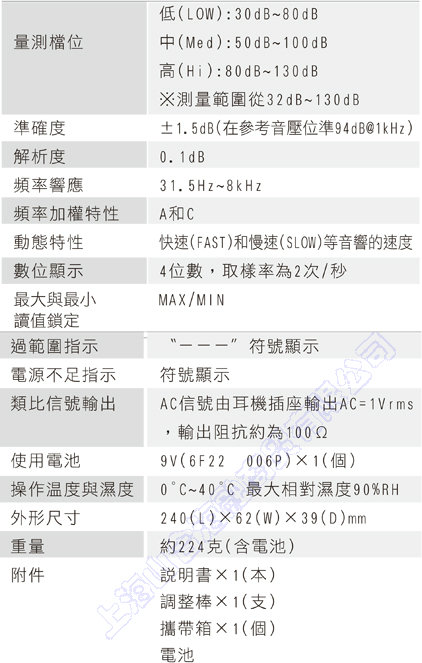

| SPECIFICATIONS |
| |
| Measuring Ranges |
Lo : 32dB ~ 80dB |
| |
Med : 50dB ~ 100dB |
| |
Hi : 80dB ~ 130dB |
| Accuracy |
+/- 1.5dB (at Reference Range) |
| Reference Sound Level & requency |
94dB, 1k Hz |
| Resolution |
0.1dB |
| Detector-Indicator Characteristic |
Fast : 125ms, Slow : 1s |
| Analog Signal Output |
AC 1Vrms for each range |
| Dimensions |
235(L) x 58.4(W) x 34(D)mm |
| Weight (prox) |
220g (battery included) |
| Power Source |
9V (6F22.006P) x 1 battery |
| Accessories |
Instruction manual |
| |
Adjusting bar |
| |
Battery |
| |
Sponge cover |
| |
Heavy-duty case |
|
|
| | |
