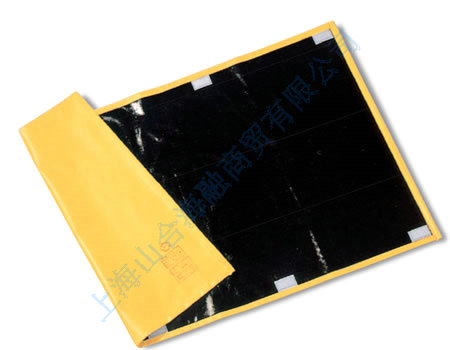

HIGH VOLTAGE PLASTIC INSULATING SHEETS高压塑料绝缘毯/绝缘垫
The PLASTIC INSULATING SHEETS are used as a portable protective device for protection of electrical workers from accidental contact with live electrical conductors, apparatus, or circuits.
塑料绝缘毯采用EVA材料制作,是一款便携式保护装置,用于防止电力操作人员意外触碰带电的电导体,装置,或电路。
The PLASTIC INSULATING SHEETS which substitute for rubber insulating products, are very light and are easy to use compared with rubber insulating products.
EVA材料制作的EVA材料制作跟橡胶绝缘毯相比,具有绝缘性能强,机械强度适中,轻便的特点,WQ可以替代橡胶绝缘毯。
ITEM NO. 型号 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 测试电压
|
A.C.MAXIMUM USE VOLTAGE
Z大使用电压 |
YS203-11-01 |
600x1000 |
20KV / 1min |
7000V |
YS203-11-02 |
680x800 |
20KV / 1min |
7000V |
YS203-11-03 |
680x800 |
20KV / 1min |
7000V |
YS203-11-04 |
900x1000 |
20KV / 1min |
7000V |
YS203-11-05 |
800x1000 |
20KV / 1min |
7000V |
YS203-11-06 |
600x1000 |
20KV / 1min |
7000V |
YS203-11-20 |
700x1500 |
20KV / 1min |
7000V |
YS241-01-01 |
600x1000 |
20KV / 3min |
17000V |
YS241-01-02 |
680x800 |
20KV / 3min |
17000V |
YS241-01-03 |
680x1200 |
20KV / 3min |
17000V |
YS241-01-04 |
800x1000 |
20KV / 3min |
17000V |
YS241-01-05 |
900x1000 |
20KV / 3min |
17000V |
YS242-01-01 |
600x1000 |
30KV / 3min |
26500V |
YS242-01-02 |
680x800 |
30KV / 3min |
26500V |
YS242-01-03 |
680x1200 |
30KV / 3min |
26500V |
YS242-01-04 |
800x1000 |
30KV / 3min |
26500V |
YS242-01-05 |
900x1000 |
30KV / 3min |
26500V |
LOW VOLTAGE PLASTIC INSULATING SHEETS低压塑料绝缘毯/绝缘垫
ITEM NO. 型号 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 测试电压
|
A.C.MAXIMUM USE VOLTAGE
Z大使用电压 |
YS209-01-01 |
400x800 |
3KV / 1min |
600V |
YS209-01-02 |
500x1000 |
3KV / 1min |
600V |
YS209-01-03 |
600x1000 |
3KV / 1min |
600V |
PLASTIC INSULATING SHEET FOR POLE塑料绝缘包毯
ITEM NO. 型号 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 测试电压
|
A.C.MAXIMUM USE VOLTAGE
Z大使用电压 |
YS430-01-01 |
410mmx4.5m |
20KV / 1min |
7000V |
YS435-01-01 |
410mmx4.5m |
20KV / 3min |
17000V |
YS207-02-01 |
410mmx8m |
20KV / 1min |
7000V |
YS435-02-02 |
410mmx8m |
20KV / 3min |
17000V |
